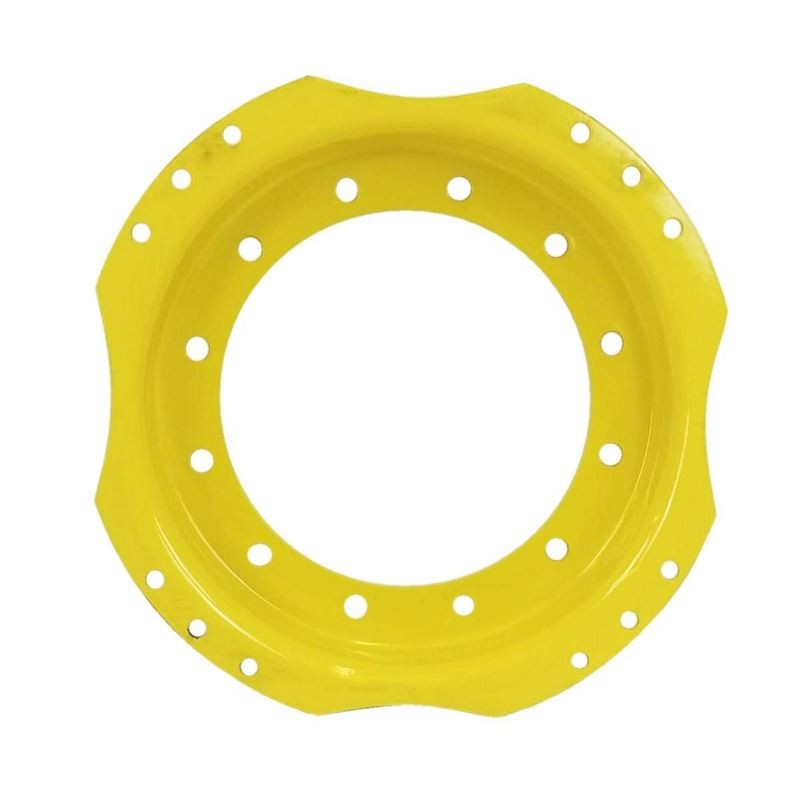

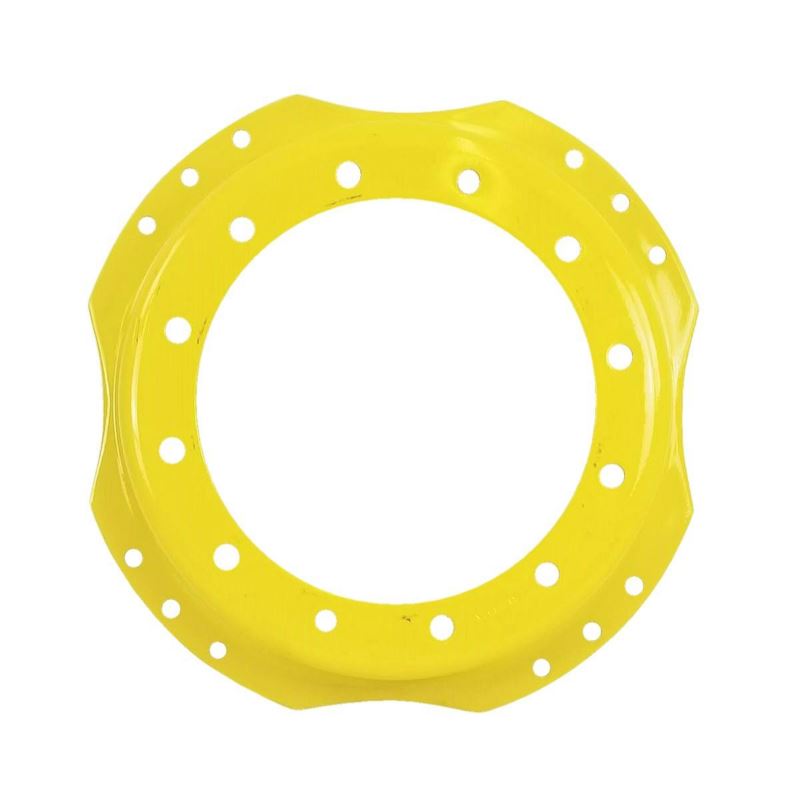

12 Hole Front Wheel Assist - 28/30 Waffle Center Disc - JD Yellow

John Deere Part# R156497
Fits John Deere tractor models 4955, 4960, 4755, 4760, 7330, 7430, 7530, 7720, 7820, 7920, 7930, 7215R, 7230R, 7260R, 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8310R, 8320R, 8335R, 8345R, 8360R, 8370R,8100, 8110, 8120, 8200, 8210, 8230, 8300, 8320, 8330, 8400, 8410, 8420
Powder coated finish
Made in the USA

SKU: 20-2881254-JY

Quantity Pricing

Qty

Price

$364.00

In Stock

Quantity
Add to Cart

Estimate Shipping

Zip Code

Estimate only. Rate to be determined on final checkout screen.

ALASKA and HAWAII Residents - Please contact us for a freight quote prior to purchase. Call 641-450-7090 or submit an inquiry through our Custom Inquiry Form.

Product Details

As a replacement center, the original manufacturer, name and part numbers are to be used for reference only.

Specifications

Rim Diameter	28/30"
Bolt Circle	16.75" (16-3/4")
Condition	New
Color	JD Yellow
Number of Bolt Holes	12
Approximate Weight	48 lbs.
Countersink	No
Outer Bolt to Bolt Measurement	4-13/16" 2-3/8"
Center Style	3/8" Formed
Bolt Hole Size	0.875" (7/8")
Offset Measurement	4"
Outer # of Bolt Holes	4 Groups of 3 Holes
Outer Bolt Circle	23.25" (23-1/4")
Pilot Hole	14.625" (14-5/8")
