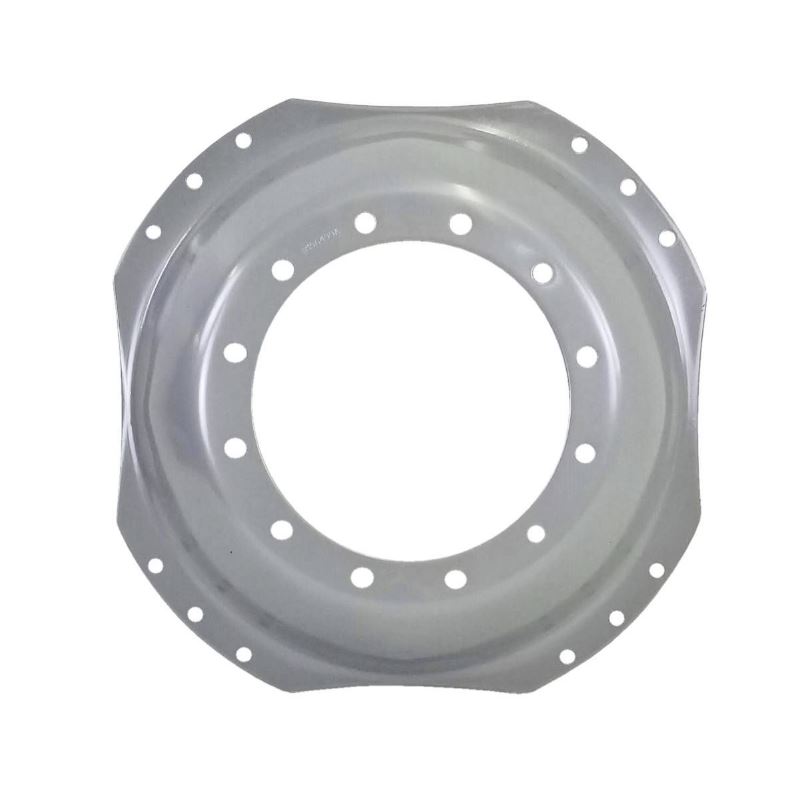

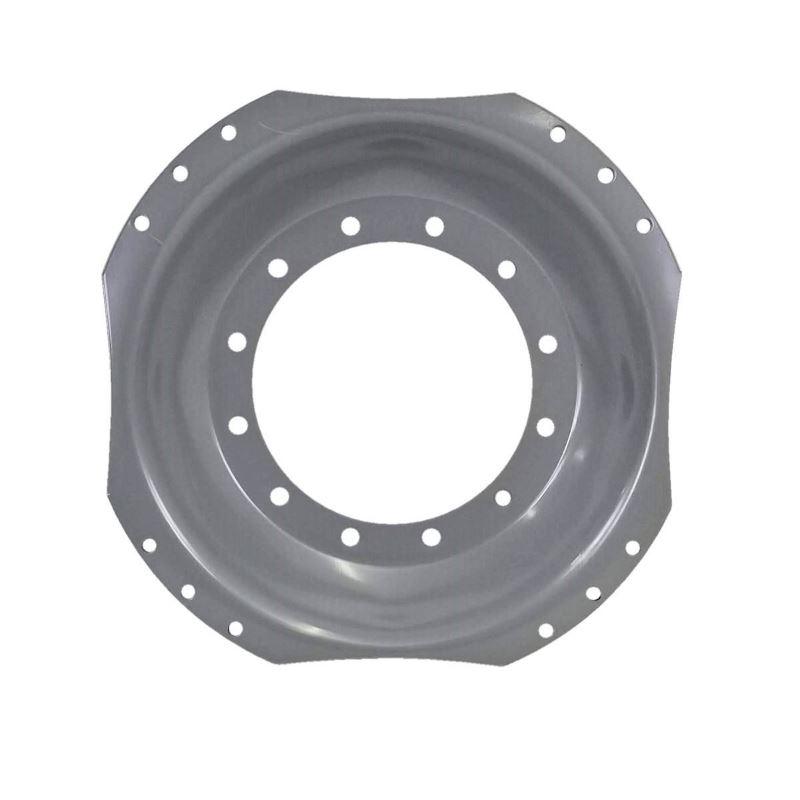

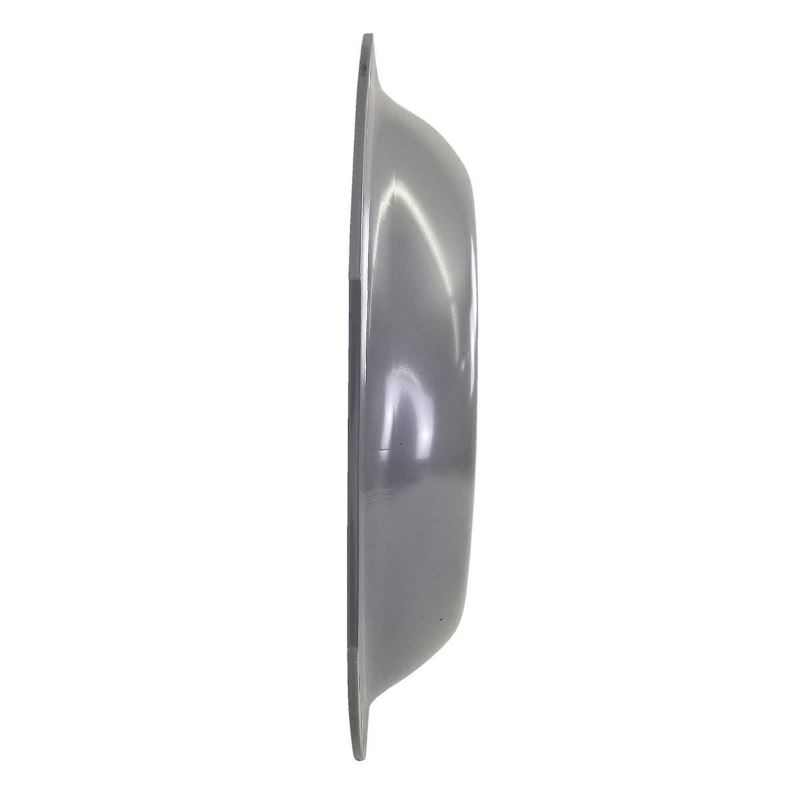

12 Hole Front Wheel Assist - 34" Waffle Center Disc - Agco Gray

Fits AGCO tractor models DT200, DT205B, DT220A, DT225, DT225B, DT240A, DT250B, DT275B with 12 hole front wheels
Fits AGCO Challenger tractor models MT645C, MT655, MT655C, MT665, MT665C, MT675C, MT675D, MT685 with 12 hole front wheels
Fits Fendt tractor models 920, 922, 924, 926, 927, 930, 933, 936 with 12 hole front wheels
Fits Massey Ferguson tractor models 8270, 8280, 8470, 8480, 8650, 8660, 8670, 8680, 8690 with 12 hole front wheel
Fits AGCO Allis tractor models 9675, 9690, 9695, 9815

Powder coated finish
Made in the USA

See list of compatible tire sizes below

SKU: 20-3481254-AG

Quantity Pricing

Qty

Price

$549.00

Message or call 641-450-7090 for availability

Estimate Shipping

Zip Code

Estimate only. Rate to be determined on final checkout screen.

ALASKA and HAWAII Residents - Please contact us for a freight quote prior to purchase. Call 641-450-7090 or submit an inquiry through our Custom Inquiry Form.

Product Details

As a replacement center, the original manufacturer, name and part numbers are to be used for reference only.

Specifications

Rim Diameter	34"
Bolt Circle	16.75" (16-3/4")
Condition	New
Color	Agco Gray
Number of Bolt Holes	12
Approximate Weight	68 lbs.
Outer Bolt to Bolt Measurement	3" 6"
Countersink	No
Center Style	3/8" Formed
Bolt Hole Size	0.875" (7/8")
Offset Measurement	4"
Outer # of Bolt Holes	4 Groups of 3 Holes
Outer Bolt Circle	29.25" (29-1/4")
Pilot Hole	14.625" (14-5/8")
